Fluid tube

1) Stainless steel fluid tube
2) Process method: Cold drawn/Rolled
3) Surface finish: Annealed/pickled or Polished.
4) Material: TP304, TP304L, TP310S, TP316, TP316L, TP317L, TP321, TP347H, TP316 Ti, TP317LMN, TP310HCBN, 316LMOD, TP725LN,  904L, S32165, S31725, S31726, S34709, S30815, S31803, S32205, S32750, S32760, S31500, S32900, Incoloy 800H, Inconel625, N04400, N06600, N06625, N08800, N08810, N08825, N10276, S17400, S17700, S31254, 1.4301, 1.4307, 1.4404, 1.4401, 1.4541, 1.4571, 1.4539, 1.4835, 1.4845, 1.4435, 1.4335, 1.4418, T91, T5, 1.4720/TP409, 431, 03X17H14M2, 08X17H13M2T, 10X17H13M2T, 12X18H9, 12X18H9T, 04X18H10, 08X18H10, 08X18H10T, 12X18H10T, 03X18H12, 03X18H12T, 12X18H12T, 08X18H12,
SA179, Gr.B, EN19T, EN24T, EN8, ST52

5) Standards:ASTM (ASME) SA/ A312, ASTM (ASME) SA/ A213/ M ASTM(ASME)269, ASTM A268,  ASTM(ASME)789,  JIS G3459,  JIS G3463,  DIN 17456,  DIN 17458, DIN1629, EN10216-5,GOST 9941
6) Size:
A) O. D.: Φ 6 to Φ 609mm
B) W.T:0.5mm to 40mm
7) Length: Max. 22 meters (specific or random)
8) Delivery conditions: Annealed/Bright annealed, pickled

9)Application:Superheater,Evaporator,Pressure and heat transmission,heat exchanger,Boiler,Condenser

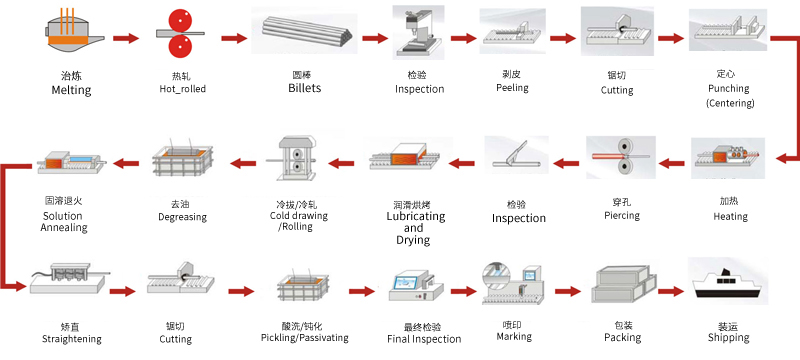

10)Production process is as below
